Monitoring framework

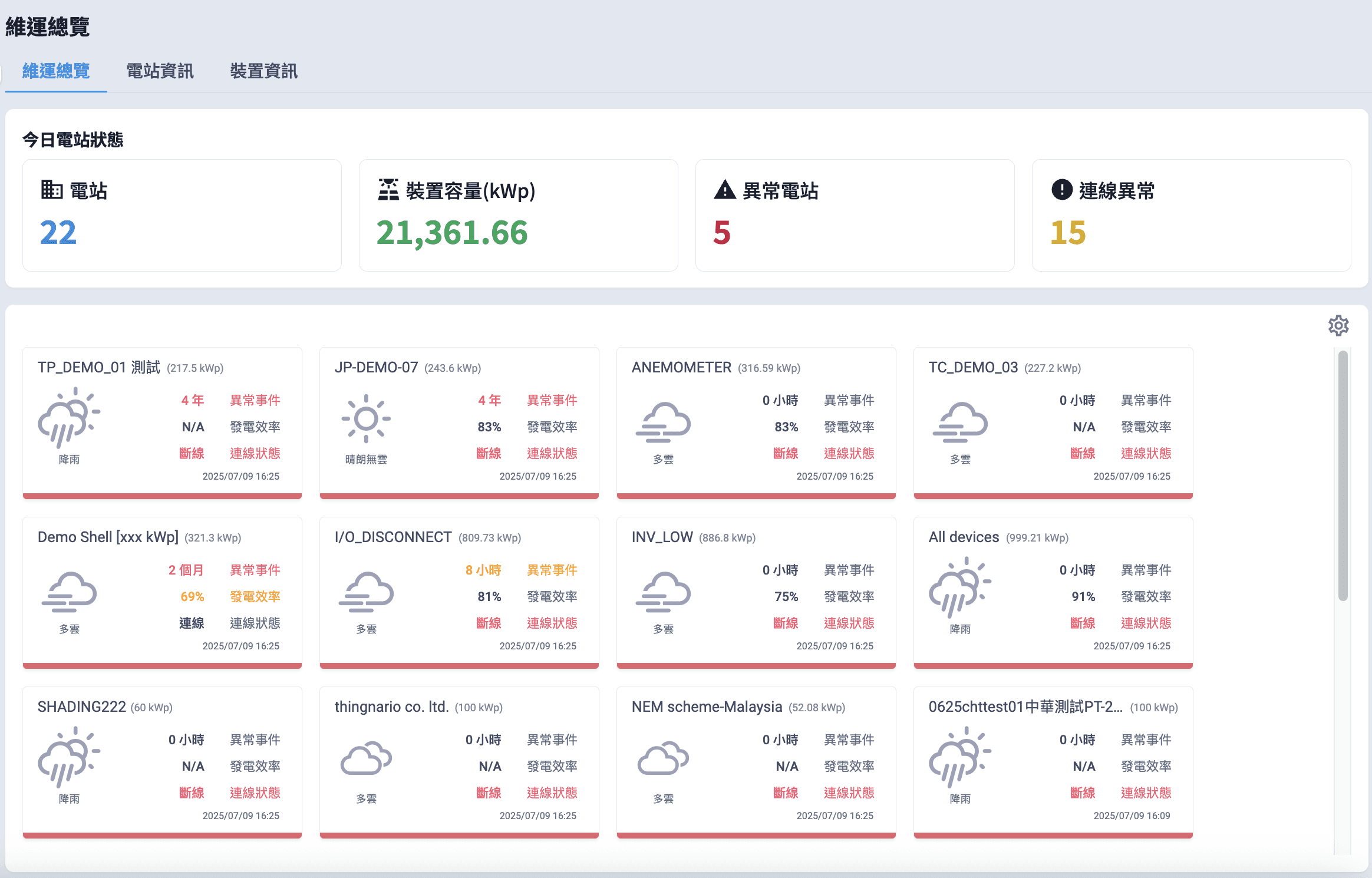

Considering the extensive nature of power generation equipment in a solar farm, a layered monitoring design has been tailored specifically for solar farms. This design allows for individual monitoring of each substation and the entire plant, enabling performance monitoring for each solar farm. It also facilitates efficiency comparisons among different stations, providing multidimensional analyses to help managers easily identify the inefficient substations and unleash the full power generation potential.

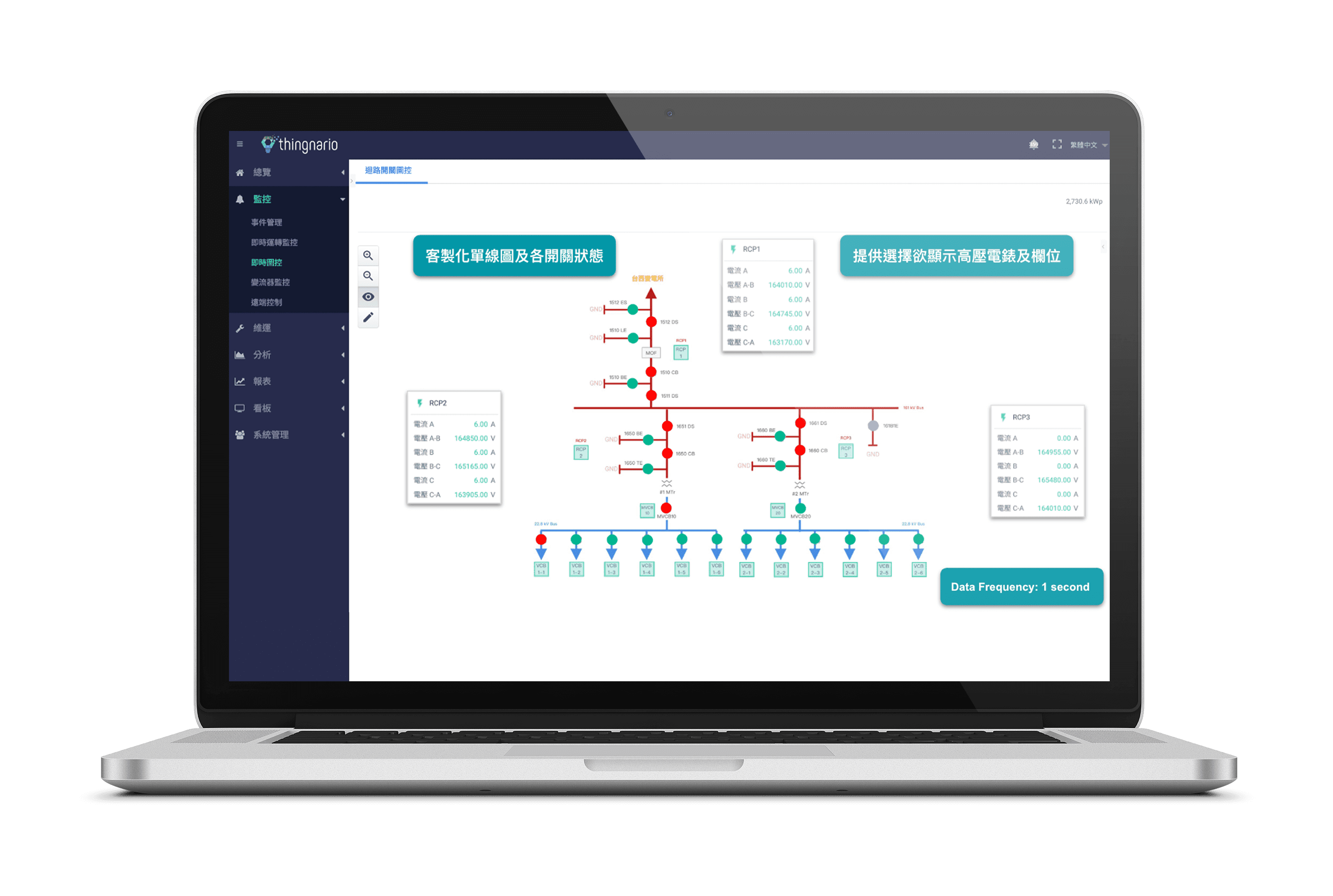

Ultra-high-voltage electricity power stations are usually composed of several medium-voltage substations and then integrated with grid-connected feeders through high-voltage equipment. PHOTON integrates both RMU and GIS switches to displays devices and data in a graphic control mode, allowing you to quickly grasp the power status of the sites.

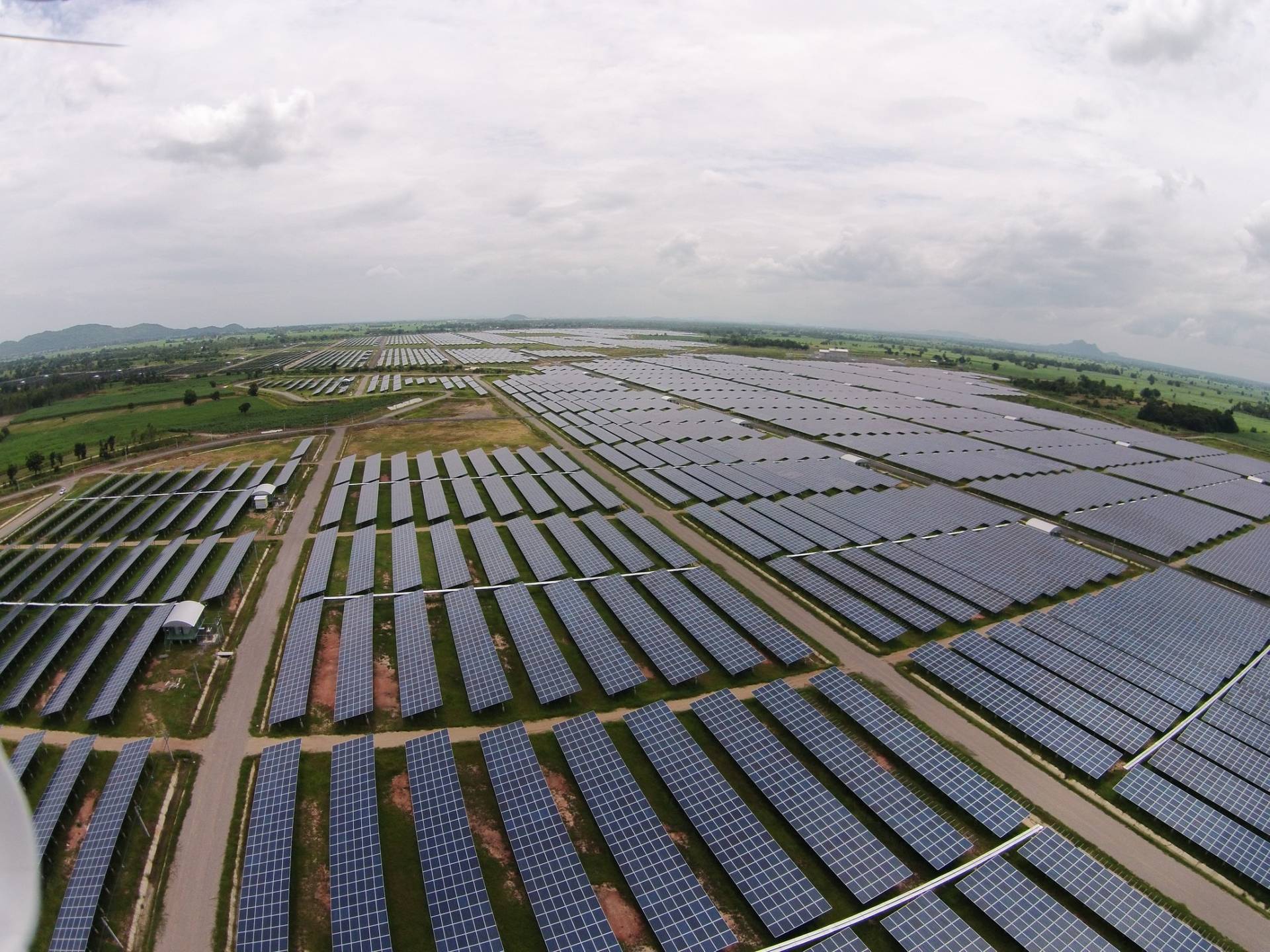

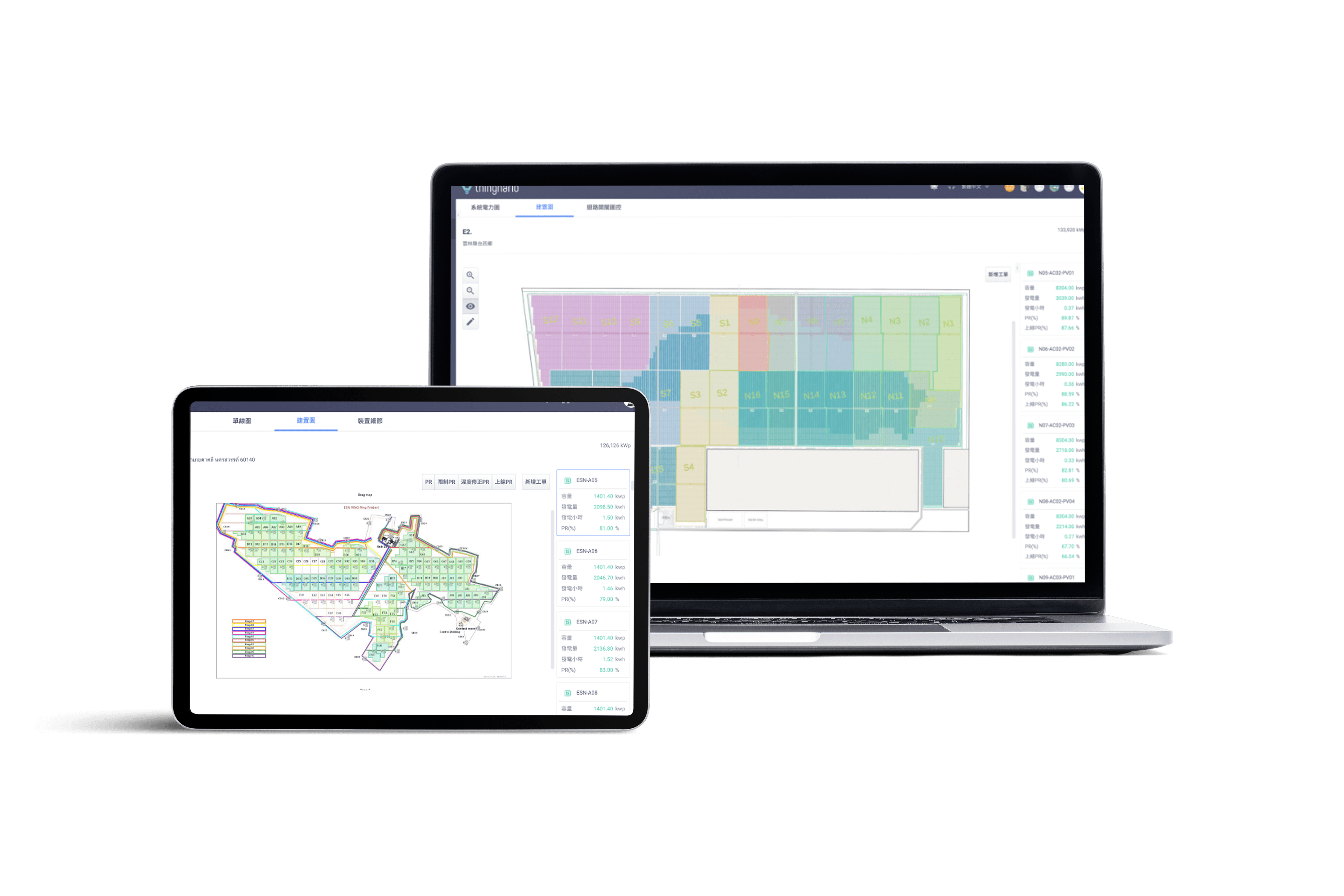

Utility Solar Farms typically cover extensive areas and have numerous pieces of equipment, making the environment complex. PHOTON not only allows for the creation of layout diagrams but also links them to real equipment and power generation data. This provides maintenance personnel with a clear interface, allowing them to easily identify anomalies at the substation level, even if they are visiting the site for the first time. This significantly accelerates the troubleshooting process.

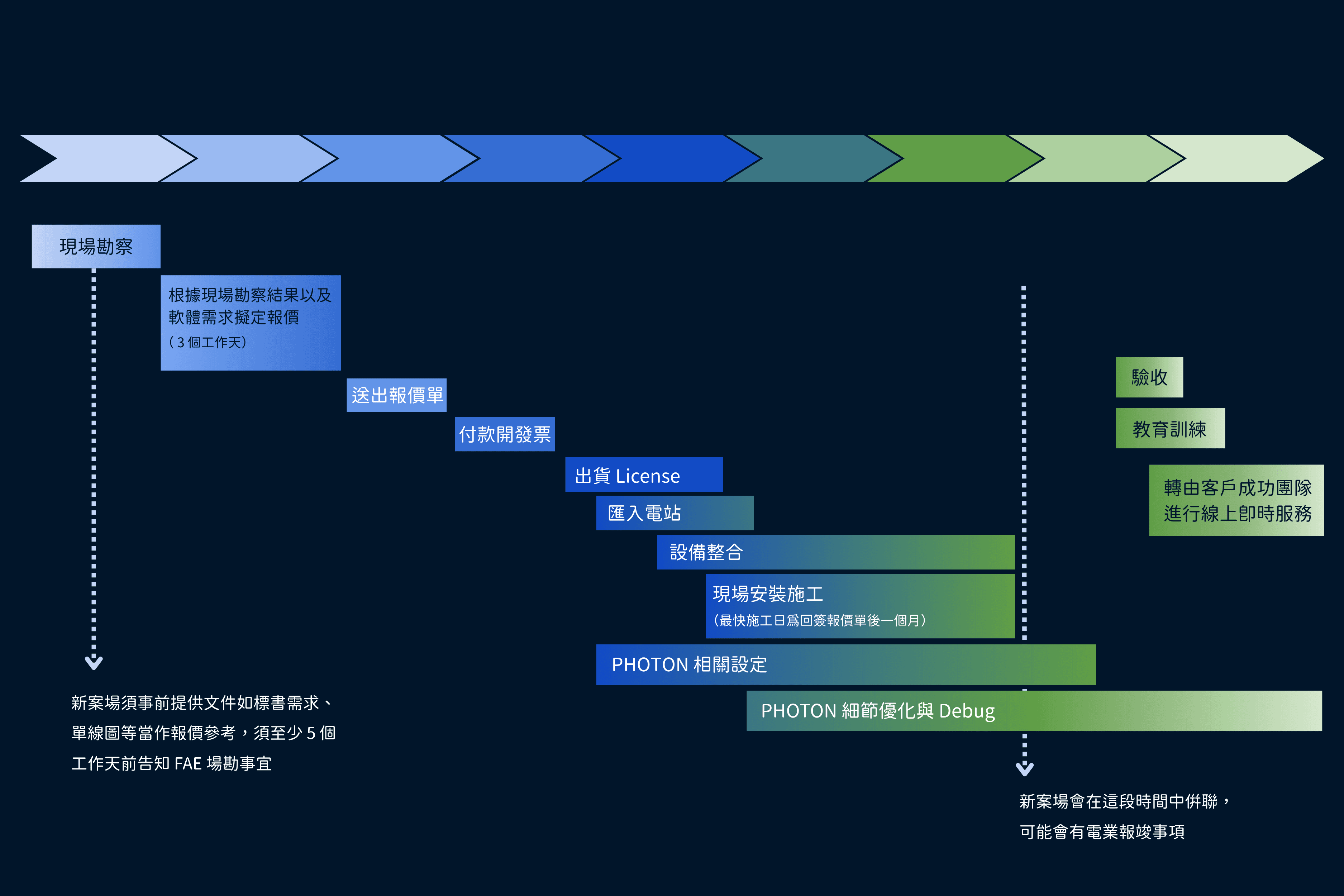

Monitoring room planning
One-stop monitoring equipment provision
Customized site power hierarchy layered monitoring
Custom RMU Loop Monitoring
Customized Financial Daily Report Monthly Report
Anti-theft System Module
API data transmission service
